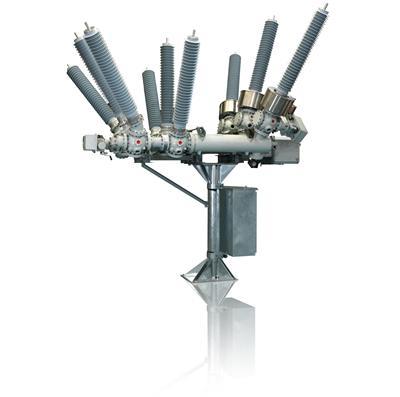

Hybrid Switchgear PASS M0 - 145 to 170 kV
- Circuit breaker
- Combined disconnector and earthing switches
- Voltage transformers and Voltage sensors
- Current Transformers
- Motor drive option
- Fast earthing switch option
- Plug in cables option
- Integration of renewable power to the grid
- Remote mining connections
- Mobile or skid mounted substations
- Substation extensions or bay replacements
PASS M0 belongs to ABB’s innovative high-voltage hybrid switchgear family PASS (Plug and Switch System). PASS encloses all functions of a complete switchgear bay in a single module. The hybrid design makes use of traditional air-insulated busbars to connect with other equipment in the substation while enclosing the following bay functions in a single-phase gas-insulated housing:
PASS modules are completely factory assembled and tested, ready for rapid installation and energization.
PASS M0 is available in numerous configurations including single busbar, double busbar, double circuit breaker, railway application, pre-assembled H-configured switchgear bay, and various other customized configurations are possible.
Applications
