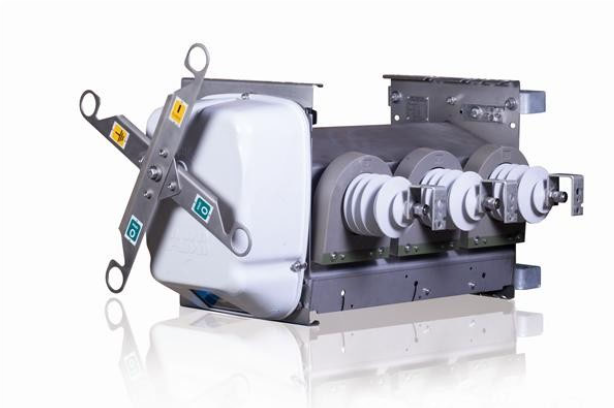

LBS ABB
0912.556.568 - 064.3819.368
ABB LBS Load Circuit Breaker Parameters:
Maximum allowable voltage: 27kV.
Rated current: 630A.
Short-circuit current tolerance (in 3s): 20kA.
Fault current tolerance (peak treatment): 50kA.
Lightning Surge Tolerance (1.2×50μs).
- Between phase and ground and between phases: 150kV.
- Contacts: 165kV.
Industrial Frequency Tolerance (dry):
- Between phase and ground and between phases: 50kV.
- Contact: 60kV.
